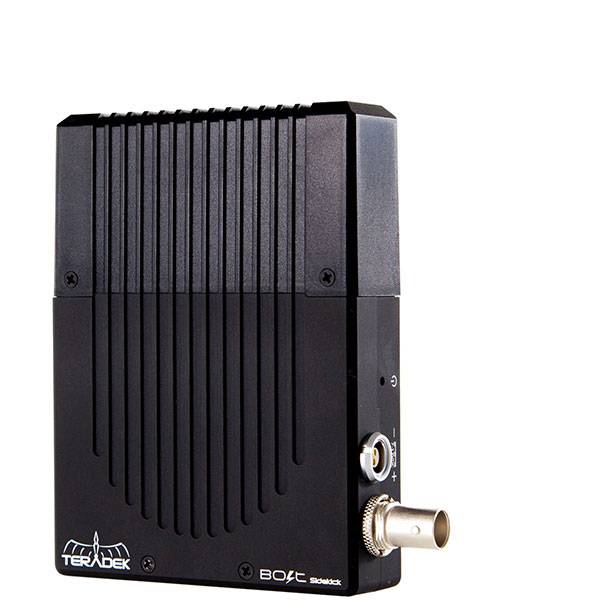

VIDEO LINK TERADEK SIDEKICKII 3G SDI RECEPTOR
Video Outputs 3G/HD/SD-SDI: 1 x BNC
Color Sampling SDI: YCbCr 4:2:2, 10-bit
Supported Resolutions 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50 (via HDMI ports only)
576i (PAL)
480p: 59.94
480i (NTSC)
Other I/O Firmware: 1 x Mini-USB
Wireless Configuration 5 GHz (20 and 40 MHz), DFS frequencies available
Channel Selection RF Channel Selection: Auto only (not configurable)
Encryption AES-128
RF Power 15 dBm EIRP
Range Up to 300' / 91.4 m (line-of-sight)
Power Supply Output: 18 W
Power Input 2-Pin LEMO: 7-17 VDC
Power Consumption Nominal: 6.9 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 1 x 3.4 x 4.5" / 2.5 x 8.6 x 11.4 cm
Weight 10.1 oz / 288 g
he Teradek Bolt Sidekick II 3G-SDI Video Receiver is designed with handheld director's monitors in mind. The low-profile chassis keeps the monitor configuration lightweight. Use the SDI output to connect to your monitor of choice, and connect the Teradek-standard 2-pin LEMO connector to either the included power supply or to a battery pack with a separately available cable. Additionally, the SDI connection can output test signals and supports timecode and start/stop metadata. This device is compatible with the Bolt 500, 1000, and 3000 transmitters, maintaining a consistent 300' line-of-sight range, regardless of the transmitter used.
